OEM 5MP 8MP 12MP Sensor Raspberry Pi MIPI Camera Module For AI Embedded Vision

Guangzhou Sincere Information Technology Ltd. is one of the most professional oem 5mp 8mp 12mp sensor raspberry pi mipi camera module for ai embedded vision manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

• Raspberry Pi-Oriented Sensor Options

The series includes IMX219 and IMX708 directions commonly used in the Raspberry Pi camera ecosystem, plus a cost-effective OV5640 option for project-level evaluation.



• Covers Entry, Balanced and Higher-Resolution Needs

Customers can choose from 5MP OV5640, 8MP IMX219 and 12MP IMX708 options according to image detail and budget requirements.

• AF, Fixed Focus and Telephoto Configurations

The lineup supports autofocus, Fixed Focus wide-angle and Fixed Focus Telephoto Lens versions for different viewing and focusing needs.



• FPC and PCB Adapter Integration Paths

Some models are positioned as FPC camera modules, while IMX708 versions can also support PCB adapter integration for easier development.



• Flexible Project-Level Customization Support

Lens, FOV, focus configuration, FPC routing, connector direction, adapter board and host-side compatibility can be evaluated according to the final project.

The current lineup is organized around three sensor platforms: OV5640, IMX219, and IMX708. OV5640 covers cost-effective 5MP AF projects, IMX219 covers 8MP AF and Fixed Focus Telephoto Lens needs, while IMX708 covers 12MP wide-angle AF / Fixed Focus configurations with optional or standard PCB adapter support.



SF3V5640BA-RP

Best suited to cost-effective 5MP Raspberry Pi MIPI projects that need autofocus and controlled platform cost.

SF3V5640BA-RP is the practical entry option in the current series. It uses an OmniVision OV5640 5MP CMOS sensor, supports VCM autofocus and provides D65.5° × H56.7° × V42.5° viewing angle. It is suitable for customers who need a cost-effective MIPI camera module for Raspberry Pi project integration, AIoT devices, smart terminals or general embedded vision development.

SF3X219BA-RP V1.0

Best suited to balanced 8MP Raspberry Pi projects that need IMX219 imaging and autofocus capability.

SF3X219BA-RP V1.0 is the balanced IMX219 AF option. It uses a Sony IMX219 8MP sensor, supports VCM autofocus, 10-bit RAW output and D75.6° × H63.6° × V50° viewing angle. It is better suited to projects that need wider scene coverage and variable-distance focusing compared with the telephoto version

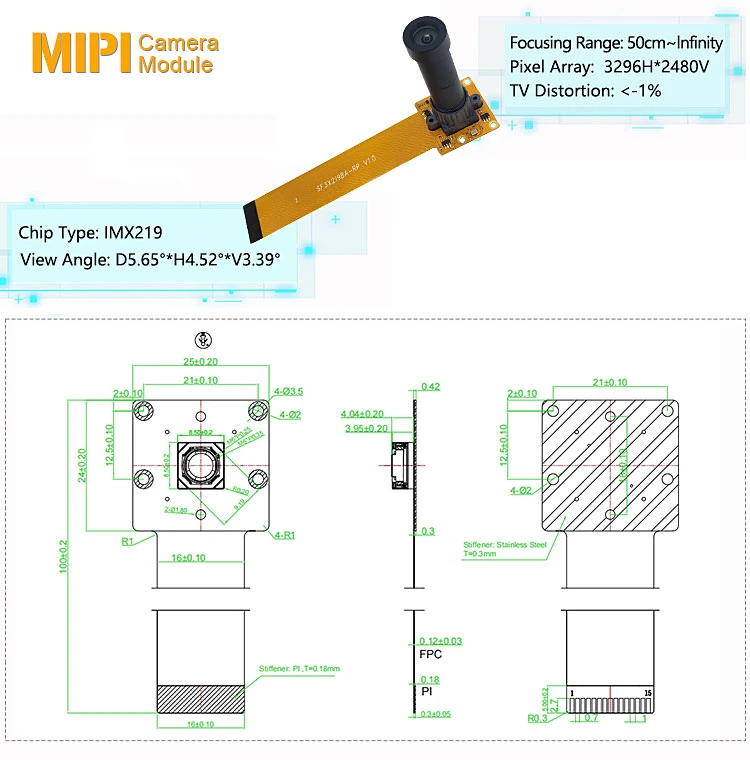

SF3X219BA-RP V1.1

Best suited to narrow-FOV long-distance observation projects that need an IMX219 Fixed Focus Telephoto Lens.

SF3X219BA-RP V1.1 is the telephoto option in the IMX219 family. It uses an M12 Fixed Focus Telephoto Lens with EFL46mm and D5.65° × H4.52° × V3.39° viewing angle. It is suitable for fixed-position monitoring, distant target capture and Raspberry Pi vision projects where narrow FOV is more important than wide scene coverage.

SF4V708BA-RP V1.0 AF

Best suited to main 12MP wide-angle Raspberry Pi projects that need IMX708 imaging and autofocus.

SF4V708BA-RP V1.0 AF is the main IMX708 direction in the series. It provides 12MP 4608 × 2592 resolution, VCM autofocus, D120° × H103.5° × V67.5° wide-angle lens and 8 / 10 / 14-bit RAW output. It is suitable for higher-resolution Raspberry Pi AI vision, robotics and embedded vision projects.



SF4V708BA-RP V1.0 FF

Best suited to 12MP wide-angle projects with stable working distance and FPC-only integration needs.

SF4V708BA-RP V1.0 FF is the Fixed Focus wide-angle FPC version. It keeps the IMX708 12MP and D120° wide-angle configuration but uses a Fixed Focus lens and does not include a PCB adapter as standard. It is suitable for projects where focus distance is stable and the customer wants a simpler FPC camera module structure.



SF4V708BA-RP V1.0 FF + PCB

Best suited to IMX708 development and evaluation projects that need a standard PCB adapter.

SF4V708BA-RP V1.0 FF + PCB is the development-ready adapter-board version. It uses the same IMX708 12MP Fixed Focus wide-angle configuration but includes a PCB adapter as standard, making it easier to mount, connect and evaluate in Raspberry Pi development or product integration stages.

Raspberry Pi AI Vision Development

This series is suitable for Raspberry Pi-based AI vision prototypes requiring MIPI camera modules with different resolution and focus options.

Robotics and Embedded Observation

Wide-angle IMX708 and AF IMX219 models can support robot vision, navigation observation and compact embedded visual capture.

Long-Distance Target Monitoring

The IMX219 Fixed Focus Telephoto Lens version is suitable for narrow-FOV observation where distant targets need clearer framing.

Smart Terminals and AIoT Devices

OV5640 and IMX219 options can support cost-sensitive terminals, recognition devices and Raspberry Pi-based smart equipment.

Education, Prototype and OEM Evaluation

The series supports development teams that need Raspberry Pi camera modules for testing before moving toward customized OEM integration.

Choose SF3V5640BA-RP if...

You need a cost-effective 5MP Raspberry Pi MIPI camera module.

The project requires autofocus but does not need Sony IMX219 or IMX708 positioning.

You are building AIoT, smart terminal, education or general embedded vision products.

You want an entry-level option with optional Fixed Focus lens direction.



Choose SF3X219BA-RP V1.0 if...

You need an 8MP IMX219 Raspberry Pi MIPI camera module.

Autofocus is important for variable-distance imaging.

The project needs wider FOV than the telephoto lens version.

You want a balanced option for Raspberry Pi development and embedded vision use.



Choose SF3X219BA-RP V1.1 if...

You need a Fixed Focus Telephoto Lens for narrow-FOV observation.

The target is far away or occupies a small portion of the scene.

Stable focus distance is more important than autofocus.

You want IMX219 imaging with an M12 telephoto lens structure.

Choose SF4V708BA-RP V1.0 AF if...

You need the main 12MP IMX708 wide-angle AF version.

The project requires higher resolution and flexible autofocus behavior.

Wide scene coverage is important.

You may need optional PCB adapter integration later.



Choose SF4V708BA-RP V1.0 FF if...

You need 12MP IMX708 wide-angle imaging but do not need autofocus.

The working distance is stable.

You prefer an FPC camera module without PCB adapter as standard.

The device structure needs a simpler module configuration.



Choose SF4V708BA-RP V1.0 FF + PCB if...

You need a standard PCB adapter for easier development or mounting.

You want the IMX708 Fixed Focus wide-angle version with a more convenient connection path.

The project is in evaluation, prototype or integration stage.

You may later compare with FPC-only or AF configurations.

Sensor and Resolution Selection
Customers can choose OV5640, IMX219 or IMX708 configurations according to image detail, cost level and project positioning.

AF, Fixed Focus and Telephoto Configuration
AF, Fixed Focus wide-angle and Fixed Focus Telephoto Lens versions can be selected according to focus behavior and viewing distance.

FOV and Optical Matching
Lens angle and working distance can be matched to scene coverage, target size and final device installation position.

FPC and Connector Adaptation
FPC routing, connector placement and module layout can be evaluated according to Raspberry Pi platform and housing constraints.

PCB Adapter Configuration
For IMX708 versions, PCB adapter configuration can be selected according to development, testing or final product integration needs.

Raspberry Pi Platform Compatibility Evaluation
Host-side compatibility can be evaluated according to the target Raspberry Pi board, software environment and imaging workflow.

Whether your project needs a cost-effective OV5640 AF module, an IMX219 autofocus or Fixed Focus Telephoto Lens option, or a 12MP IMX708 wide-angle AF / Fixed Focus configuration, SincereFirst can help evaluate the right Raspberry Pi MIPI camera module for your development, testing, and OEM integration needs.
