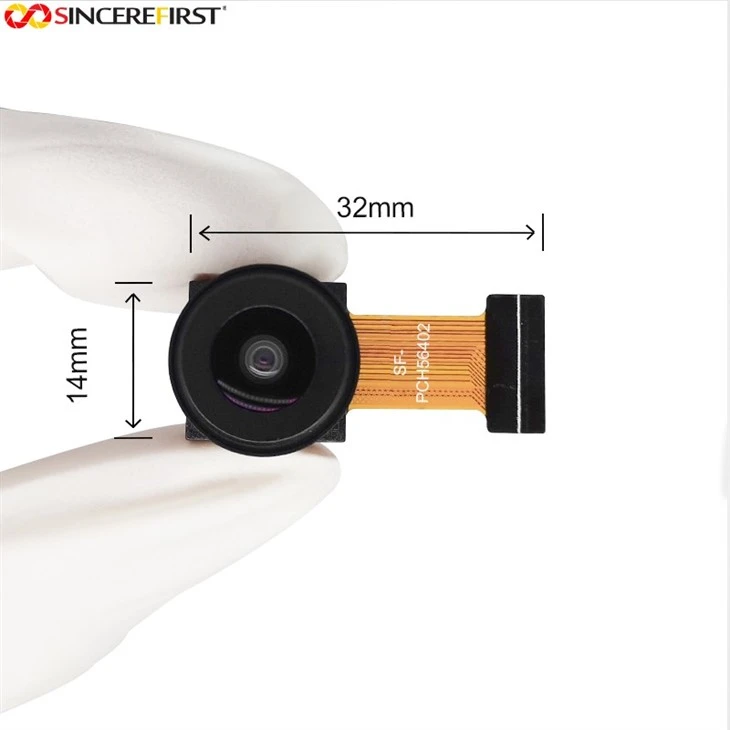

5MP OV5640 Wide Angle Lens DVP Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional 5mp ov5640 wide angle lens dvp camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
This fixed focus camera module is based on OmniVision OV5640 CMOS Camera Image Sensor, the cost-effective CMOS imaging solution that enables high-speed image capture capabilities, and includes variable functions, such as gain, frame rate, and exposure while maintaining low power consumption. The sensor has a 1/4 Inch optical format, which combines with the pixel size of 1.4um(H) x 1.4um(V), resulting in the 5.0 Megapixel support at 30 fps 2592H x 1944V for maximum video performance.
Features:
•5MP resolution with Omnivision OV5640 CMOS image sensor
•Fixed Focus / Manually adjustable
•High quality image, high sensitivity
•Small dimension for embedded application
Application of Camera Module:
MIPI Camera module is widely used for many applications, such as smartphones, tablets,
PC multimedia, embedded system, robotics, drones,
Medical equipment, artificial intelligence, and more.

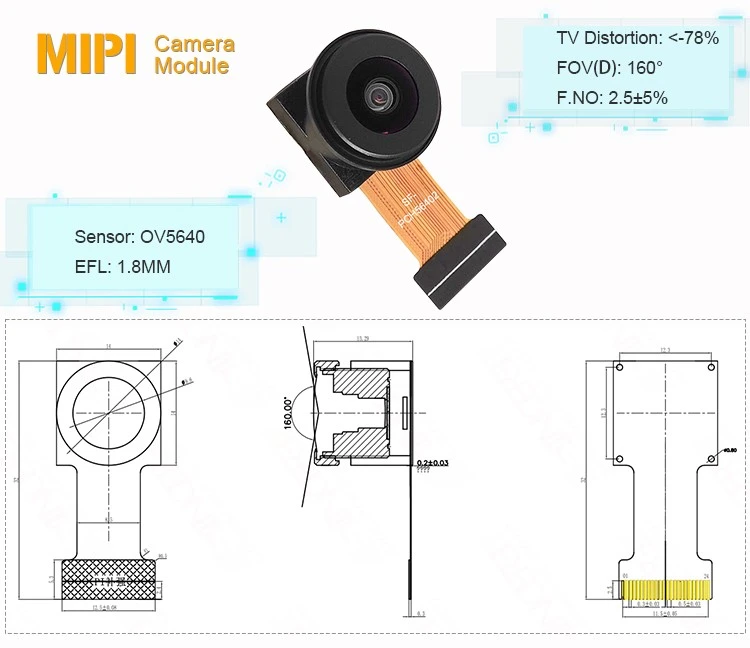

Product Details:
|
Sensor Type |
OV5640 Sensor |
|
Pixels |
5MP |
|
EFL |
1.8mm |
|
Lens Size |
1/4inch |
|
F Number |
2.5±5% |
|
View Angle |
160° |
|
TV Distortion |
＜-78% |
|
Focus Type |
Fixed Focus |
|
DVDD |
1.5±10%V |
|
AVDD |
2.8V |
