OV5640 5MP 150° Ultra-Wide ESP32 Camera Module For Robot Navigation And Wide-Area Sensing
Guangzhou Sincere Information Technology Ltd. is one of the most professional ov5640 5mp 150° ultra-wide esp32 camera module for robot navigation and wide-area sensing manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

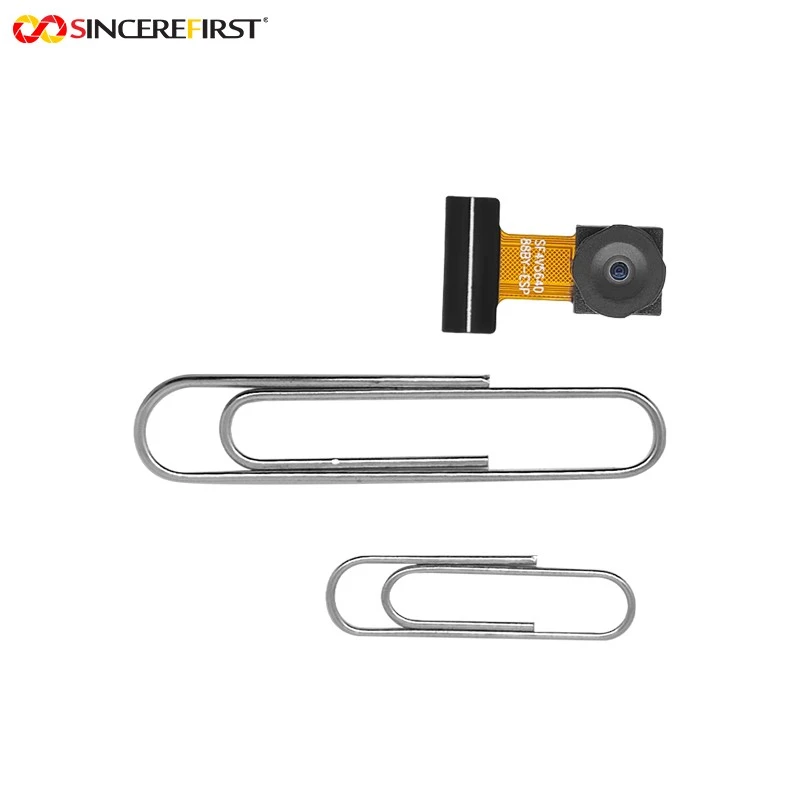

Robot navigation and wide-area sensing systems often need to see as much of the surrounding scene as possible from a single camera position. SF4V564088BYC-ESP C2.0 is the widest-angle model in this ESP32 series, using a D150° lens to prioritize scene coverage while retaining 5MP native image detail.

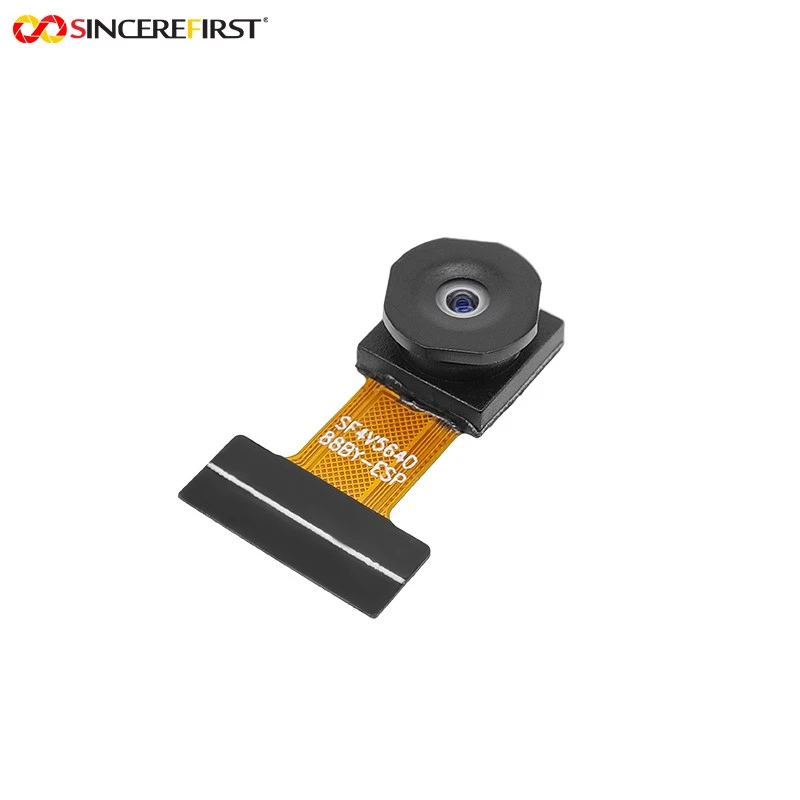

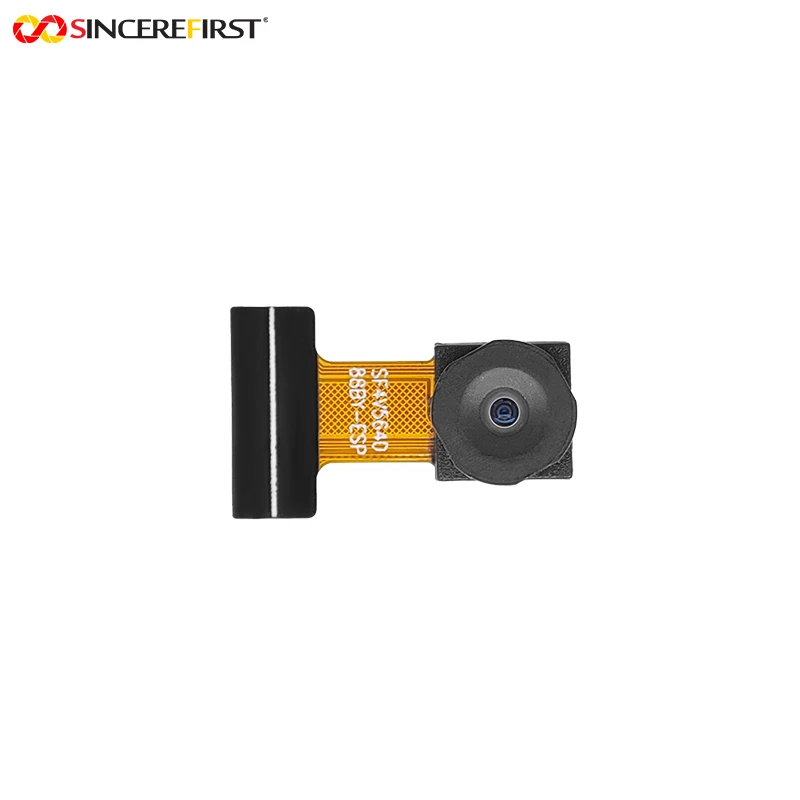

The module uses an OV5640 CMOS sensor with 2592×1944 resolution and supports 1080P@30FPS. Its D150° × H130° × V105° lens, 1.0 mm focal length and 40 cm to Infinity depth of field provide a broad observation area through a 24Pin DVP interface for ESP32-compatible integration.
Features
• D150° Ultra-Wide Field of View

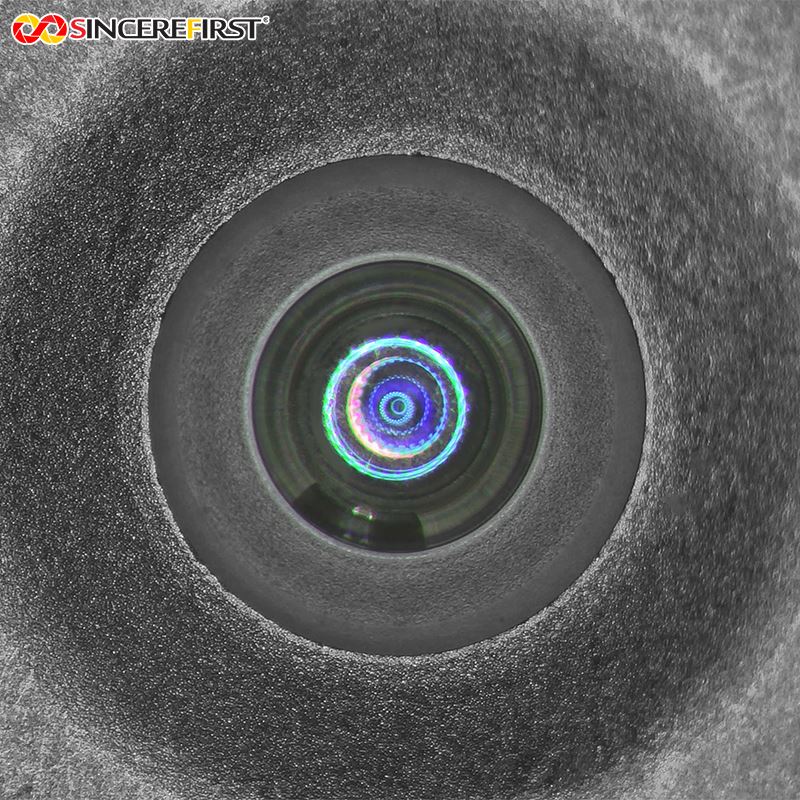

The D150° × H130° × V105° lens provides the widest scene coverage among the current ESP32 series models.
• 5MP OV5640 Resolution
The 2592×1944 sensor combines broad coverage with higher native image detail.
• 1.0 mm Short Focal Length
The short focal length supports the ultra-wide optical design used for robot and environmental observation.
• 40 cm to Infinity Depth of Field
The Fixed Focus configuration supports general scene observation beyond close-range distances.
• 1080P@30FPS Support
The module supports 1080P video at 30FPS.
• 24Pin DVP ESP32 Interface

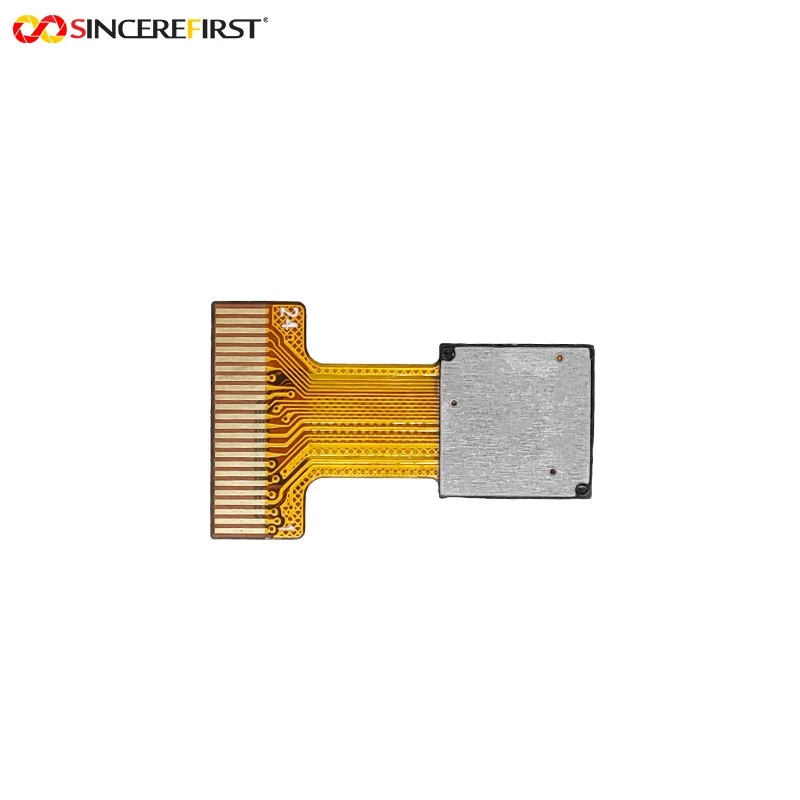

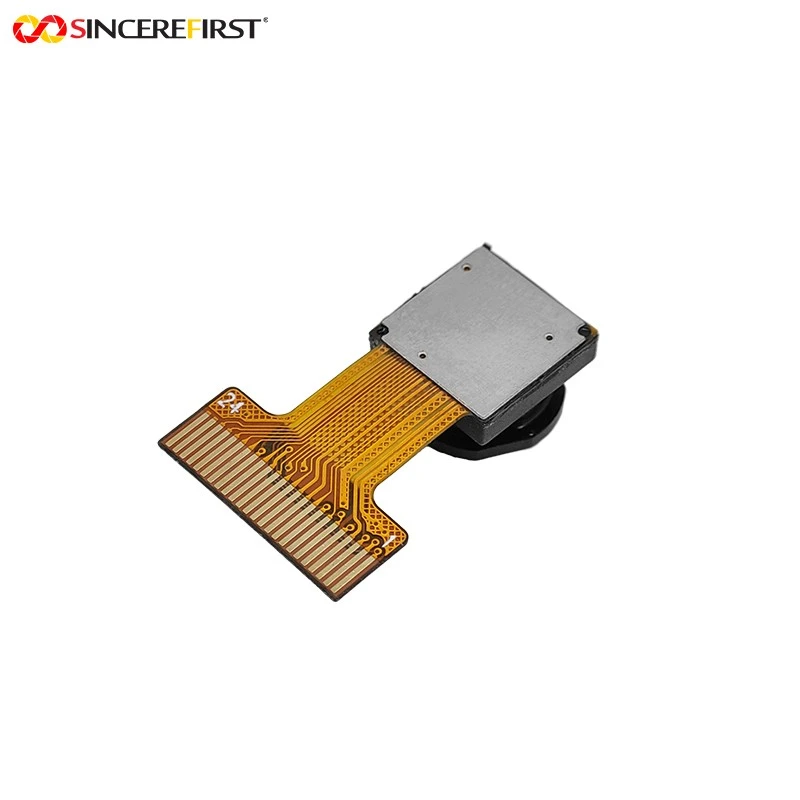

A 24Pin DVP interface supports ESP32-compatible camera integration.
Application of DVP Camera Module
• Robot Navigation and Surrounding Awareness
The D150° field of view allows a compact robot to capture more of the surrounding environment from one camera position.
• Wide-Area Smart-Home Observation
The ultra-wide lens can observe a larger portion of a room or shared space in smart-home camera devices.
• Environmental Sensing Cameras
ESP32-based sensing nodes can use the broad field of view to collect visual context around equipment, spaces or mobile platforms.
• Compact Telepresence and Remote Observation
The ultra-wide view can be useful where a compact remote camera needs to show more of the surrounding scene rather than a tightly framed subject.
Product Details
|
Product Name |
Wide Angle 1080P ESP32 DVP Camera Module |
|
Sensor |
OmniVision OV5640 CMOS CMOS Sensor |
|
Pixel |
5MP |
|
Resolution |
2592x1944 |
|
Frame Rate |
1080P@30FPS |
|
Sensor Size |
1/4 Inch |
|
Focus Type |
Fixed Focus |
|
Focusing Range |
40 cm-Infinity |
|
EFL |
1.0mm ±5% |
|
F.NO |
2.2±5% |
|
FOV |
D150°*H130°*V105° |
|
TV Distortion |
＜1% |
|
Platform |
ESP32 Compatible |
|
Interface |
24-pin DVP |
Customization Options
Field-of-View Evaluation
The optical configuration can be reviewed if the target project requires a different balance between scene coverage and edge perspective.
Mounting and Lens Position
The ultra-wide lens should be evaluated together with enclosure openings and nearby structures to avoid blocking the captured scene.
FPC and DVP Integration

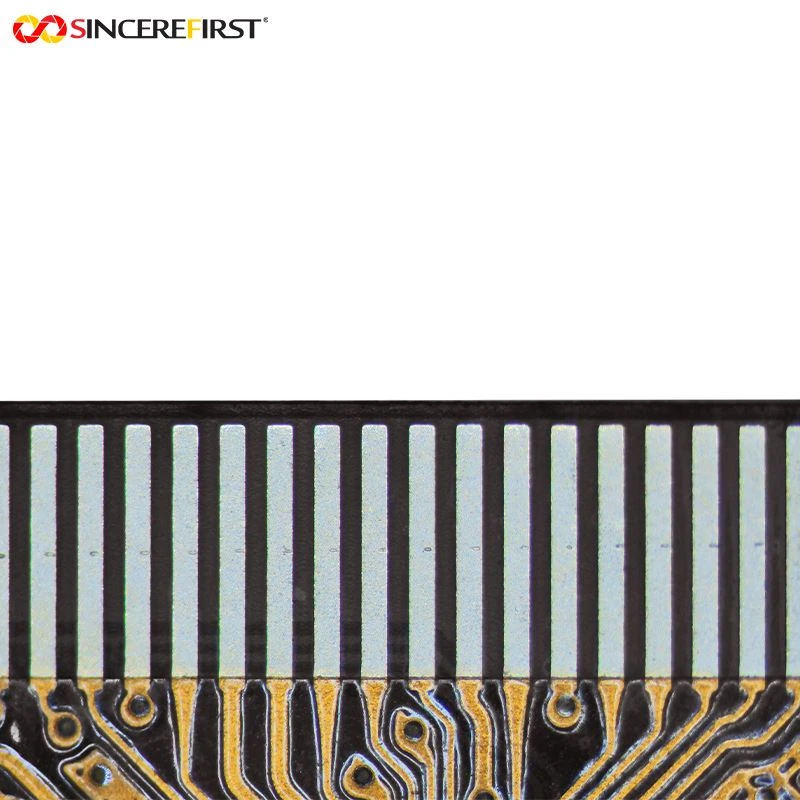

Connector and FPC details can be reviewed around the ESP32 host-board layout.
Host Processing Evaluation
The combination of 5MP native data and an ultra-wide scene should be considered together with the target ESP32 processing and memory workflow.
FAQ
Q: Which ESP32 camera module has the widest field of view in this series?
A: SF4V564088BYC-ESP C2.0 is the widest current option with D150° × H130° × V105° coverage.
Q: What is the native resolution?
A: The OV5640 sensor provides 2592×1944 resolution, or 5MP.
Q: What is the focal length?
A: The confirmed focal length is 1.0 mm.
Q: What is the depth of field?
A: The specified depth of field is 40 cm to Infinity.
Q: Does it support 1080P@30FPS?
A: Yes. The module supports 1080P@30FPS.
Q: What interface does it use?
A: It uses a 24Pin DVP interface for ESP32-compatible integration.
Q: Should I choose this model or the standard OV5640 version?
A: Choose this C2.0 model when ultra-wide coverage is the priority. Choose SF4V564088BY-ESP when a more conventional D76.6° view is preferred.
Explore Ultra-Wide Vision for Your ESP32 Project
Need to capture more of the surrounding scene for robot navigation or wide-area observation? SincereFirst can help determine whether the D150° ultra-wide configuration fits your device layout and viewing requirements. Discuss your project with us or request a sample to test the coverage in your application.
