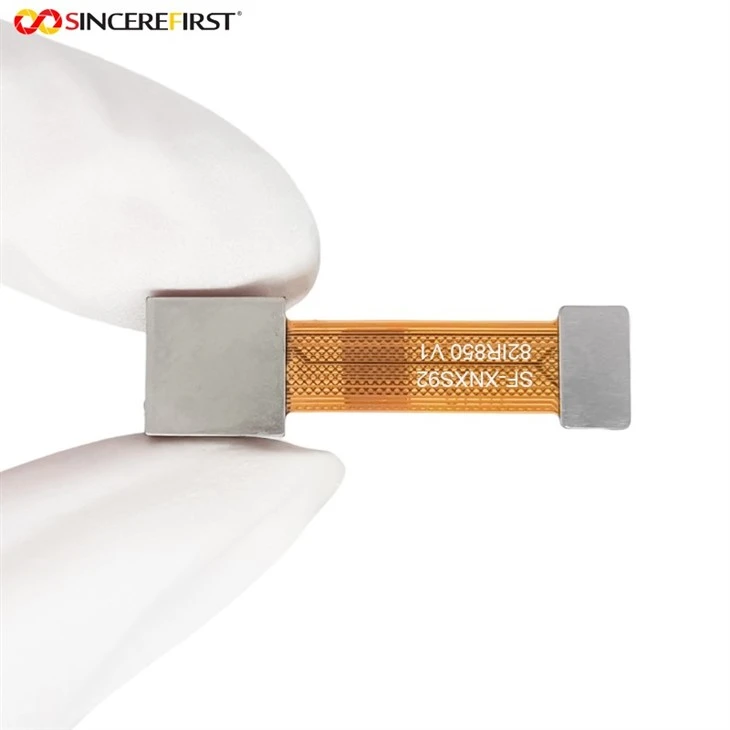

1MP OV9282 Global Shutter Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional 1mp ov9282 global shutter camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

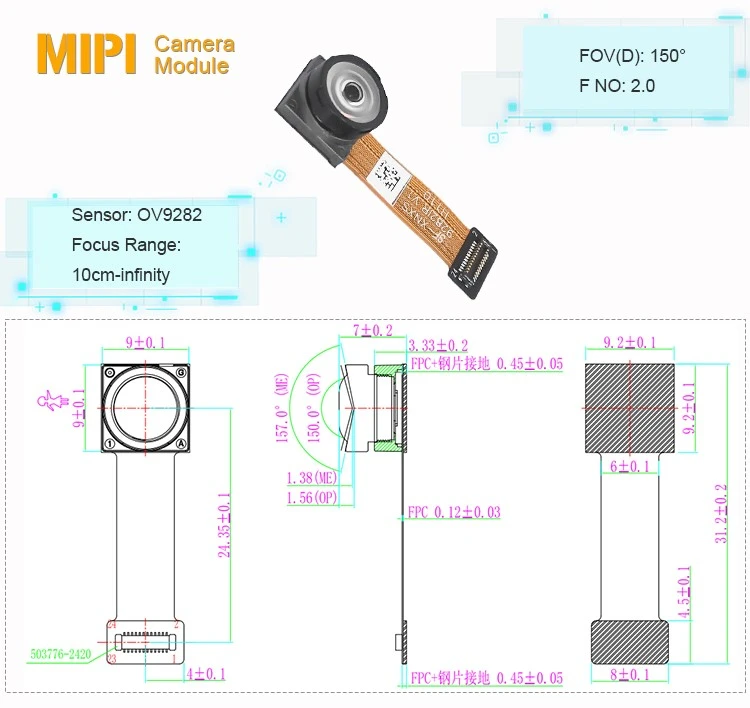

OmniVision's OV9282 is a 1MP (1280×800) global shutter grayscale image sensor. The OV9282 camera module is equipped with a lens with a viewing angle of 150°. It can work at up to 120 fps, and the shutter and excellent low-light sensitivity allow the module to be used for any application that requires gesture detection, tracking, and depth and motion detection.

◆Sensor: mono OV9282

◆Pixel size: 3 μm x 3 μm

◆Resolution: 1296 x 816

◆Optical size: 1/4 inch

◆Focusing range: 10cm ~ infinity

◆Without IR filter

◆Output interface: MIPI 2-Lane

◆Output formats: RAW8 / RAW10

◆Maximum image transfer rate: 1280 x 800 at 120 fps

◆HFOV: 150°

◆F.NO: 2.0

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
