Best Sony IMX766 50MP Camera Resolution Sensor Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional best sony imx766 50mp camera resolution sensor module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

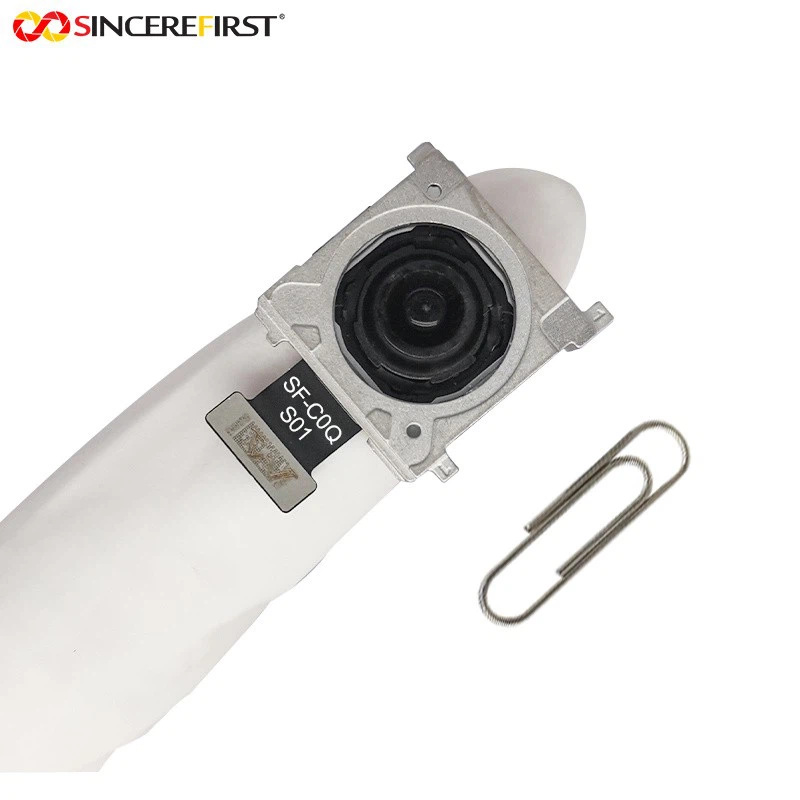

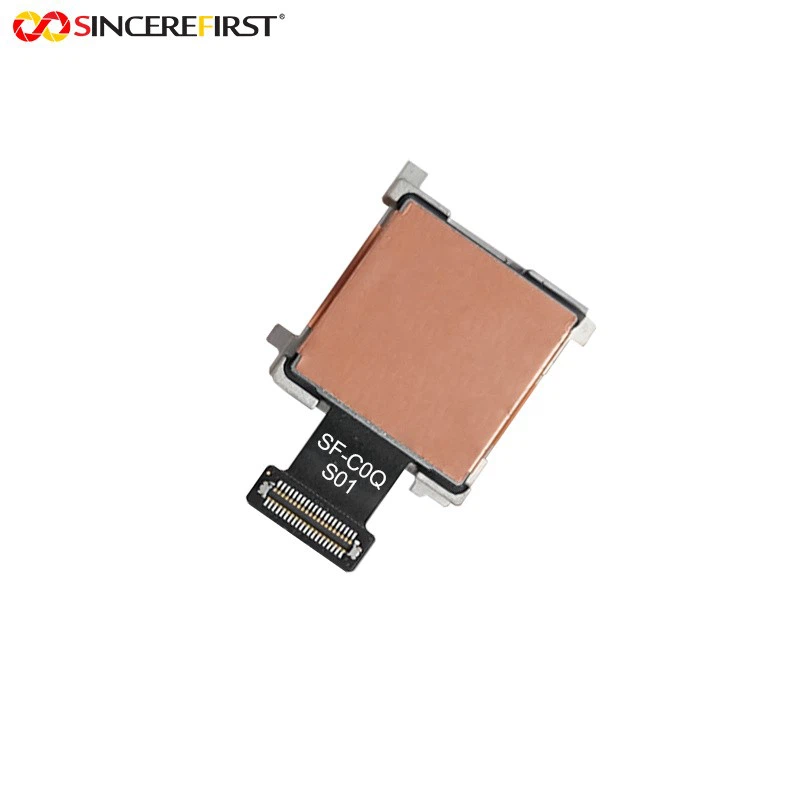

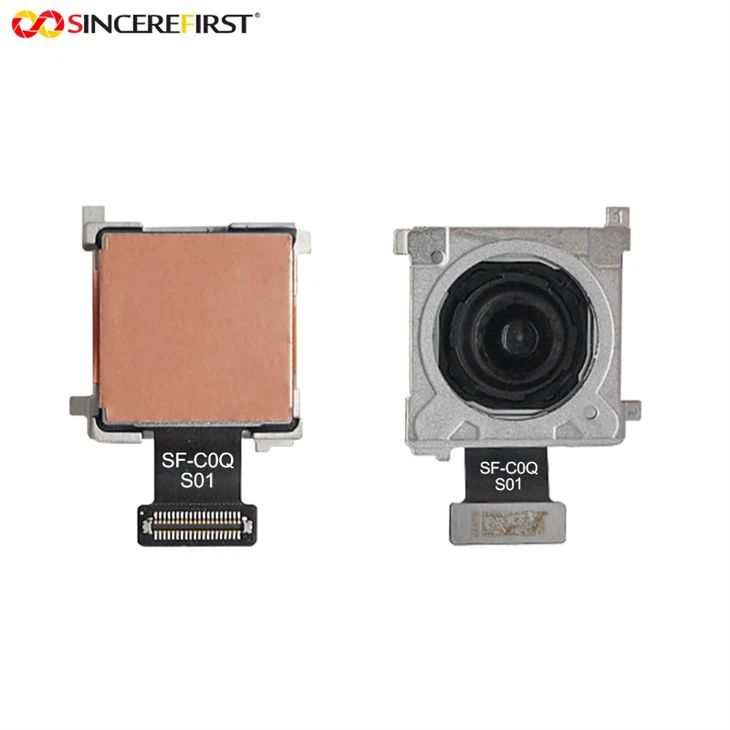

This is the best Sony IMX766 50MP resolution camera sensor module. IMX766 is a 10.240 mm diagonal (1/1.56 type) 50.3 megapixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Sony's back-illuminated stacked CMOS image sensor, achieves high-speed image capture through column-parallel A/D conversion circuit, and achieves high sensitivity and low noise images (compared with traditional CMOS image sensors) through back-illuminated imaging pixel structure. R, G and B pigment primary color mosaic filter is adopted. It operates with four power supply voltages: analog 2.8V and 1.8V, digital 1.1 V and 1.8V for input/output interface, and achieves low power consumption. In addition, this camera module is designed for application fields such as 3D printing, industry, IoT RFID reader, etc.



Features

•Back-illuminated and stacked CMOS image sensor

•Quad Bayer Coding (QBC) color filter arrangement

•Phase Detection Auto Focus (PDAF) with 2x20CL

•High Frame Rate

24frame/s@Full resolution(QBC Re-mosaic)

120frame/s@2x2 Adjacent Pixel Binning(16:9)

480frame/s@2x2 Adjacent Pixel Binning V2H2(16:9)

•High signal to noise ratio (SNR)

•Dual sensor synchronization operation

•Built-in 2D Dynamic Defect Pixel Correction (DPC)

•Lens Shading Correction (LSC)

•Built-in temperature sensor

•Output video format of RAW10,RAW8

•QBC Re-mosaic function

•Two PLLs for independent clock generation for pixel control and data output interface

•CSI-2 serial data output

MIPI C-PHY 1trio/2trio/3trio,Max 3.1 Gsps/Trio,C-PHY spec. ver.1.2 compliant

MIPI D-PHY 2lane/4lane,Max.2.5Gbps/lane,D-PHY spec.ver.1.2 compliant

•2-wire serial communication (Supports I²C "Fast mode" and "Fast-mode Plus",13C)

•DOL function (Quad Binning and 10bit mode only)

•4K bit of OTP ROM for users

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
