OV5648 5MP Autofocus FHD USB Camera Module With Separated Design
Guangzhou Sincere Information Technology Ltd. is one of the most professional ov5648 5mp autofocus fhd usb camera module with separated design manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
This 5MP autofocus USB camera module uses an OmniVision OV5648 CMOS sensor to support 2592 × 1944 image capture and 1920 × 1080@30FPS video output. With USB2.0 interface and UVC protocol support, it is designed for embedded vision devices that need driver-free video capture and autofocus performance.

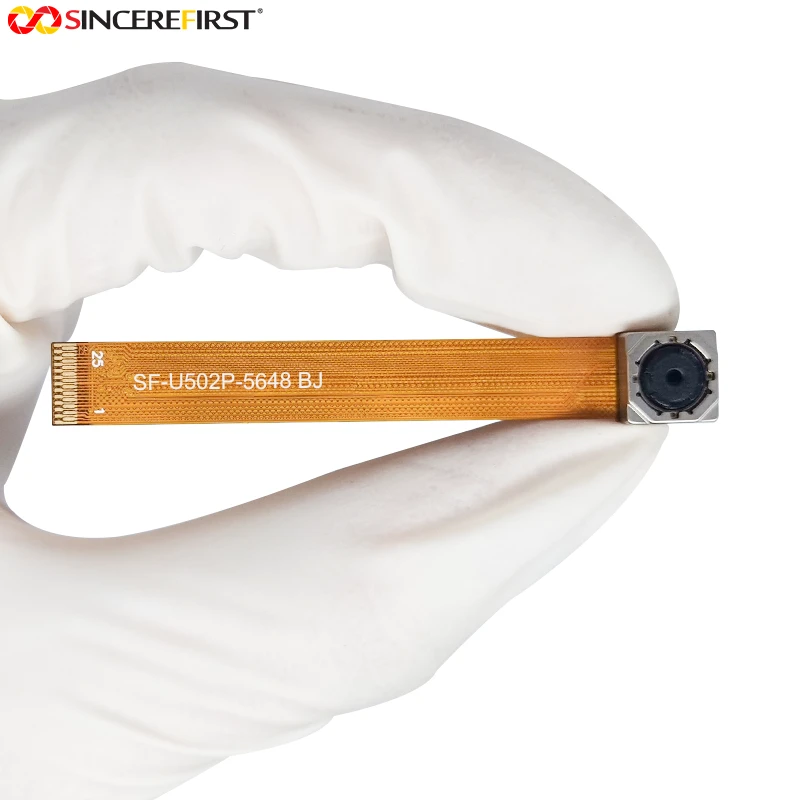

The separated structure connects the sensor board to the DSP board through a 25-pin gold finger design, giving engineers more flexibility when the lens position and main control board position cannot be placed on the same PCB. A single MIPI module section without the DSP board can also be evaluated for projects that need direct MIPI integration.
Features
• VCM Autofocus for Adjustable Working Distance
The VCM autofocus lens helps the camera adapt to changing object distances, making it useful for handheld imaging tools and compact inspection products.
• 5MP OV5648 Sensor for Detailed Image Capture
The OV5648 sensor supports 2592 × 1944 resolution, providing more image detail than basic VGA or 2MP modules for recognition and inspection applications.
• Separated Sensor Board and DSP Board Design
The separated structure allows the camera head and processing board to be placed in different locations, helping solve mechanical layout challenges in compact devices.
• USB2.0 UVC Output for Driver-Free Integration
USB2.0 with UVC protocol support simplifies integration with host systems that require plug-and-play video capture.
• D72° Lens for Balanced Field Coverage
The D72° field of view provides practical scene coverage for close-range imaging, handheld devices and embedded recognition terminals.
• Optional MIPI Module Section
For projects that do not need the USB DSP board, the MIPI sensor board section can be evaluated as a separate module configuration.
Application of USB Camera Module
• Autofocus Inspection Tools
Suitable for portable inspection tools, adjustable-distance visual checking devices or close-range inspection fixtures where autofocus helps reduce manual lens adjustment.
• Smart Handheld Imaging
The separated structure and autofocus capability can support handheld imaging terminals, portable scanners or compact visual capture products.
• Embedded Recognition Terminals
The 5MP sensor, USB2.0 UVC output and D72° lens can be used in compact recognition terminals for object capture, label reading or image-based identification.
• Compact OEM Vision Products
The separated sensor board design is useful for OEM products where the lens position is limited by mechanical structure, such as small control panels, embedded housings or custom imaging devices.
Product Details
|
Product Name |
1080P Separated Autofocus USB Camera Module |
|
Image Sensor |
OmniVision OV5648 CMOS sensor |
|
Pixel |
5MP, 2592x1944 |
|
Resolution |
1920 x1080@30FPS |
|
Sensor Size |
1/4 Inch |
|
Focus Type |
VCM Autofocus |
|
FOV |
D72° |
|

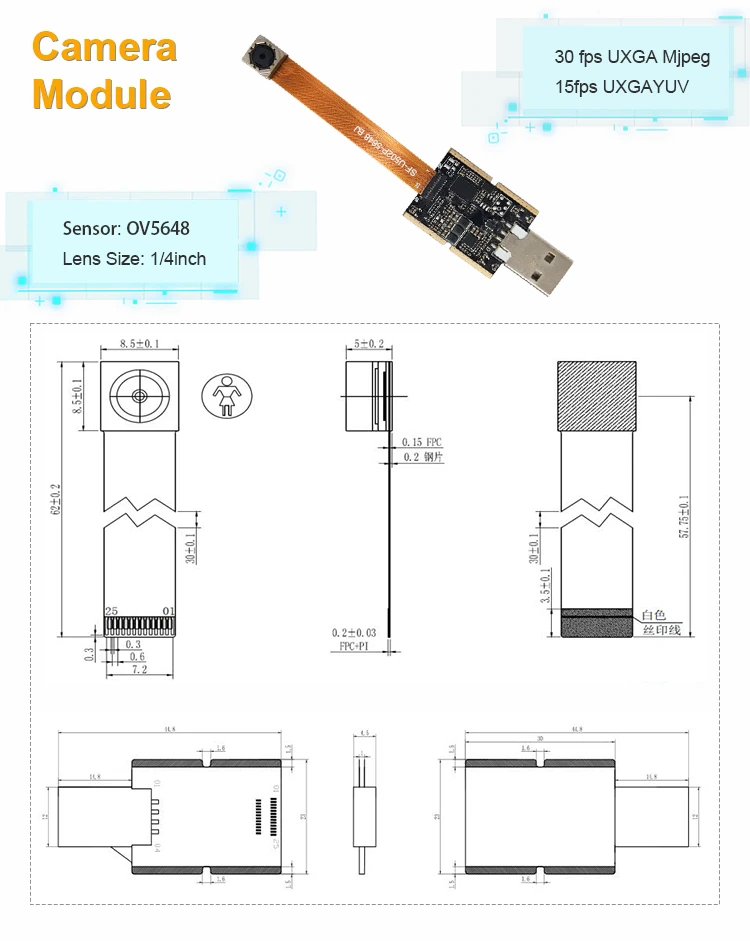

Structure |
Separated sensor board + DSP board |
|
Board Connection |
25-pin gold finger connection to DSP board |
|
Interface |
USB2.0 |
|
Protocol |
UVC |
Customization Options
Lens and FOV Evaluation
Lens angle, autofocus range and working distance can be evaluated according to the object size, installation position and imaging requirement.
Separated Board Layout
Sensor board placement, DSP board placement and board-to-board connection method can be reviewed to fit compact device structures.
USB or MIPI Configuration
The complete USB2.0 UVC module can be used for driver-free video capture, while the MIPI sensor section can be evaluated for direct host-side integration.
Connector and FPC Customization
Connector type, FPC length and pin configuration can be evaluated according to the customer's mechanical and electrical design.
Image Tuning Support
Image parameters such as exposure, color, sharpness and autofocus behavior can be evaluated during sample testing and host platform integration.
FAQ
Q: What is the confirmed model for this product page?
A: The confirmed model is SF-F5AFT+SF-U502P-5648BJ.
Q: What sensor does this module use?
A: It uses the OmniVision OV5648 CMOS sensor with 5MP resolution.
Q: Does this module support autofocus?
A: Yes. It uses a VCM autofocus lens structure for projects that require adjustable focus performance.
Q: Is this a USB camera module or a MIPI camera module?
A: The standard configuration is a USB2.0 UVC camera module with a separated sensor board and DSP board. A MIPI sensor board section without the DSP board can also be evaluated.
Q: What is the field of view?
A: The confirmed lens field of view is D72°.
Q: What is the value of the separated design?
A: The separated design allows the camera head and DSP board to be placed in different positions, which is useful when the device has limited internal space.
Q: Can the connector or FPC be customized?
A: Yes. Connector type, FPC length, pin definition and board layout can be evaluated according to the customer's hardware structure.
Q: What information should I provide before requesting a sample?
A: Please provide your application, host platform, USB or MIPI requirement, FOV, working distance, board placement, connector requirement and sample testing plan.
Need a 5MP autofocus USB camera module with a separated sensor board design?
Send SincereFirst your application, host platform, working distance, FOV requirement, board layout, USB/MIPI integration path and connector requirement. Our team can help evaluate whether this OV5648 autofocus module fits your OEM device.
