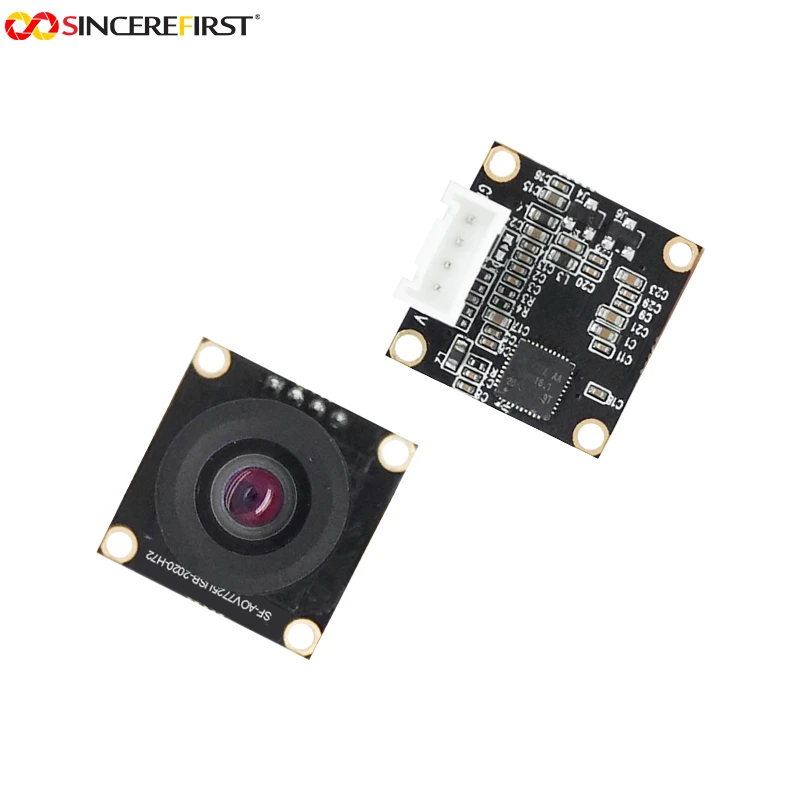

Sony Starvis Sensor IMX678 8MP Low Light AF Compact USB Camera Module

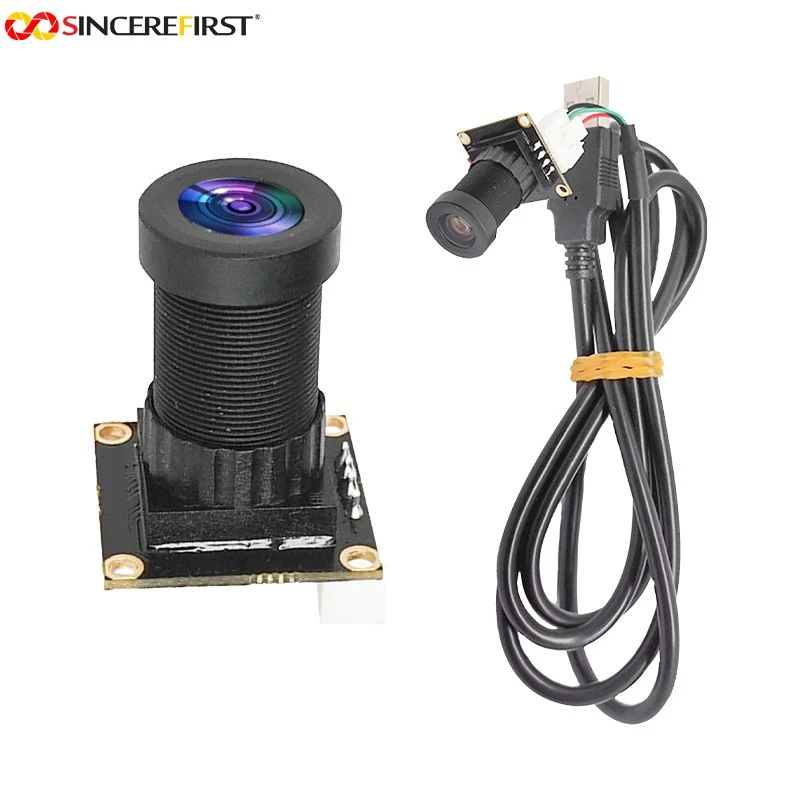

8MP STARVIS Sensor USB2.0 camera module (11)

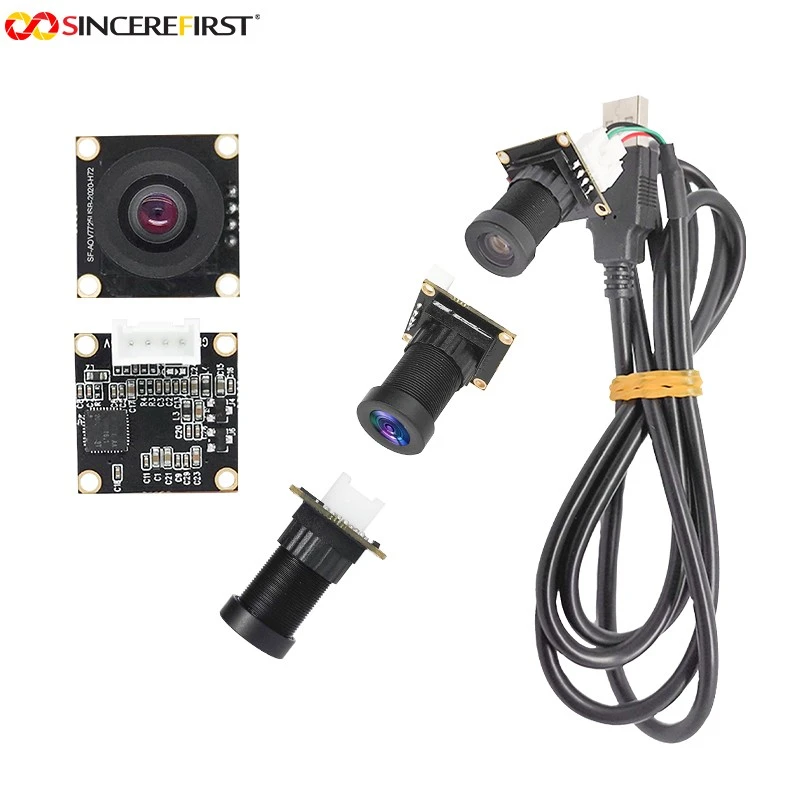

8MP STARVIS Sensor USB2.0 camera module (12)

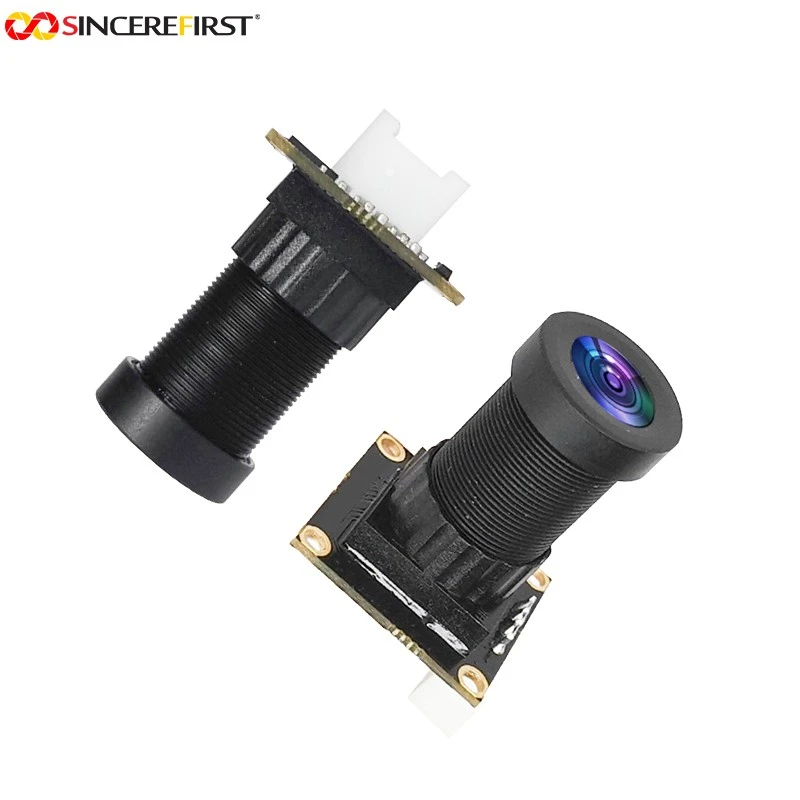

8MP STARVIS Sensor USB2.0 camera module (13)

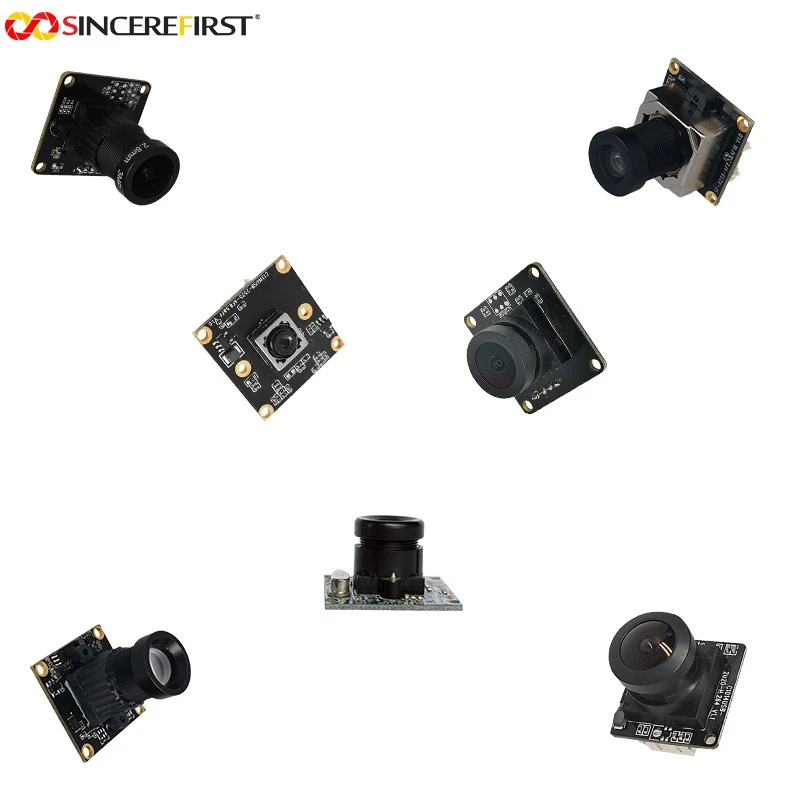

8MP STARVIS Sensor USB2.0 camera module (1)
8MP STARVIS Sensor USB2.0 camera module (3)
8MP STARVIS Sensor USB2.0 camera module (5)
8MP STARVIS Sensor USB2.0 camera module (7)
Sony Starvis Sensor IMX678 8MP Low Light AF Compact USB Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional sony starvis sensor imx678 8mp low light af compact usb camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
This is an 8MP STARVIS Sensor USB2.0 camera module designed for projects that need 4K image capture, low-light performance and practical USB integration. Built with the Sony IMX678 CMOS sensor, it supports 3840 × 2160 resolution, 4K@30FPS video direction, 1/1.8-inch optical format, 2.0μm × 2.0μm pixel size, STARVIS 2 technology, HDR and NIR-enhanced imaging. With a 32mm × 32mm board, D91.6° × H80.1° × V45.6° lens angle and USB2.0 output, it is suitable for monitoring devices, recognition terminals, industrial visual capture and embedded imaging systems that need stronger low-light image performance.
Features
• Sony IMX678 8MP Sensor
Supports 3840 × 2160 image capture for 4K embedded USB camera applications.
• STARVIS 2 Low-Light Imaging
Improves visibility in low-light scenes and supports projects requiring stronger night or dim-light performance.
• HDR and NIR Enhancement
Helps adapt to complex lighting and near-infrared-related imaging requirements.
• VCM Autofocus Configuration
Supports autofocus behavior for applications where object distance may change during operation.
• 32mm × 32mm USB Board
The standard board structure supports practical installation into embedded USB imaging products.
Application of USB Camera Module
• Low-Light Monitoring Devices
Suitable for monitoring products that need 4K imaging and enhanced low-light performance.
• Industrial Visual Inspection
Can be evaluated for inspection systems requiring clear image capture under variable lighting.
• Smart Recognition Terminals
Works for terminals that need USB camera integration, HDR and NIR-enhanced imaging.
• Embedded Vision Devices
Suitable for OEM systems requiring IMX678 image quality and USB2.0 host connection.
Product Details
|
Product Name |
4K Night Vision Mini Camera Module |
|
Image Sensor |
Sony IMX678 CMOS sensor |
|
Pixel |
8MP, 3840x2160 |
|
Resolution |
4K@30FPS |
|
Sensor Size |
1/1.8 Inch |
|
EFL |
6mm |
|
Focus Type |
VCM Autofocus |
|
FOV |
D91.6° × H80.1° × V45.6° |
|
Features |
STARVIS 2, HDR, NIR enhancement |
|
Interface |
USB2.0 |
|
Module Size |
32mm × 32mm |
Customization Options
Low-Light Scene Matching
Sensor tuning and image settings can be evaluated for low-light, HDR or NIR-related application scenes.
Lens and FOV Configuration
Lens angle, focal length and working distance can be matched to monitoring, inspection or recognition needs.
Autofocus Behavior Adjustment
Autofocus behavior can be evaluated according to target distance, focusing speed and product workflow.
USB2.0 Host Integration
USB connection, cable routing and host-side image capture behavior can be checked according to the final device.
Mechanical Layout Adaptation
The 32mm × 32mm board, lens height and mounting direction can be assessed for the customer's housing design.
FAQ
Q: What is the main difference between SF6X708RPFBC V1.0 AF and other IMX708 Raspberry Pi modules?
A: Its key difference is the long FPC design for direct Raspberry Pi kit connection without an adapter PCB.
Q: Does this model support autofocus?
A: Yes. This version uses VCM autofocus.
Q: What sensor does it use?
A: It uses a Sony IMX708 CMOS sensor.
Q: What resolution does it support?
A: It supports 12MP resolution, 4608 × 2592.
Q: What is the lens angle?
A: The lens angle is D120° × H103.5° × V67.5°.
Q: Does it require a PCB adapter?
A: No. This model is positioned as a direct-connection long FPC version for Raspberry Pi kit integration.
Q: Is there a Fixed Focus version?
A: Yes. SF6X708RPFBC V1.0 FF is available for stable-distance projects.
Q: What should I provide for project evaluation?
A: Please provide Raspberry Pi platform, focus requirement, FOV, FPC routing space, connector requirement and mechanical structure.
