2MP 1080P Full HD CMOS USB Camera Module For Document And Object Capture

Guangzhou Sincere Information Technology Ltd. is one of the most professional 2mp 1080p full hd cmos usb camera module for document and object capture manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction

The 2MP CMOS camera module delivers Full HD video for products that show a document, an object or an operating area. Its 1920 × 1080 output at 30fps provides image detail for visual presentation and observation, with the lens defining how the subject fills the frame.



The sensor has a 1/3.02-inch optical format and 2.7 × 2.7μm pixels. Fixed Focus suits a consistent camera-to-subject distance, such as a defined document position, while Auto Focus is available for changing object distances. Selecting these around the task helps use the Full HD image on the relevant area.

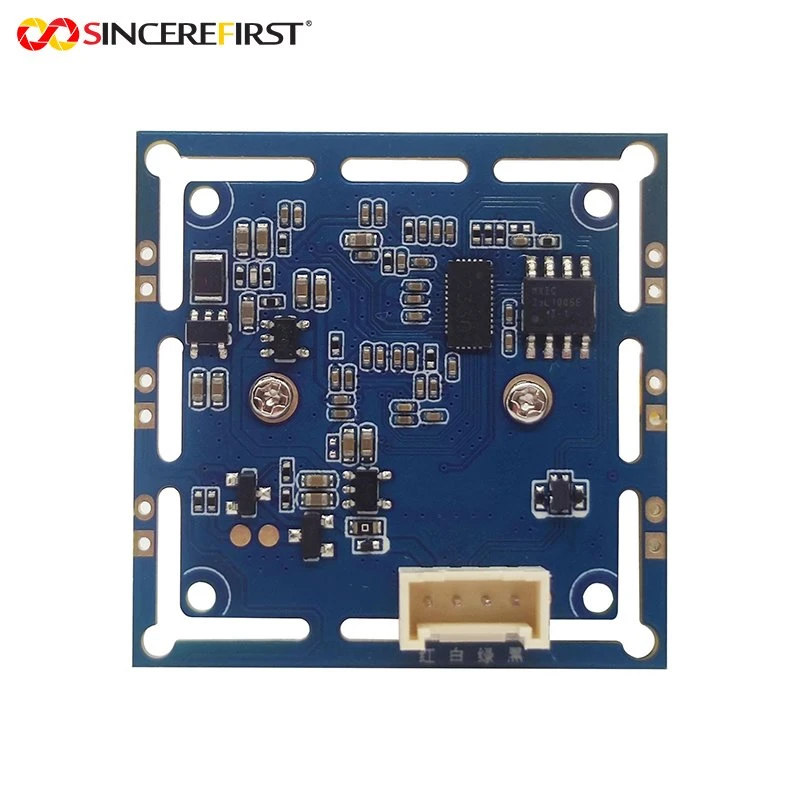

USB2.0 and UVC provide the video connection to a compatible host. The 38 × 38mm board supports equipment integration, with MJPG / YUY2 output, automatic exposure and automatic white balance.

• 1080P30 Capture for Visible Detail

1920x1080 video at 30fps provides Full HD image input for viewing documents, samples and practical operations. For the same captured area, it offers more image pixels than 720P.



• Optics Matched to the Subject

Choose lens field of view, working distance and Fixed Focus or Auto Focus around the subject's position. These choices determine whether the required document or object fits the frame and how it is focused.



• UVC Video through USB2.0

The module uses UVC for a standard video connection to compatible hosts. MJPG and YUY2 formats support different video application requirements.



• Automatic and Adjustable Image Controls

Automatic exposure and white balance help respond to scene changes. Adjustable image parameters allow the host application to control brightness, contrast, gain and related settings.

• Document Presentation Devices

Capture a page or printed material for display on a connected system. Lens selection frames the required page area, while Full HD video provides the image input for the presentation.



• Object and Sample Demonstration

Show a physical object, sample or teaching item. The available focus options support a defined display position or changing object distances.



• Assembly Workstation Observation

Use a camera module within equipment to observe parts and visible assembly activity. A stable viewing station can use a Fixed Focus configuration, with Auto Focus available for a different operating workflow.

Lens and framing

Select field of view and working distance for the document, object or observation area.

Filters and IR-CUT

Match the optical filter configuration to the application's imaging conditions.

PCB and mechanical layout

Adapt board dimensions, mounting and component layout to the equipment.

Shell, cable and connectors

Select protection structure, cable routing and connection details around the installation.

USB SDK, firmware and driver support

Provide platform-specific assistance for the video application.

Interface and output settings

Select supported configurations around the host's viewing workflow.

Certification and lifecycle services

SincereFirst supports project certification requirements, supply coordination and warranty service for the agreed configuration.

SincereFirst can help combine the optical configuration, board design and USB platform support for your document, object or equipment-viewing product. Discuss the subject and viewing arrangement to define the camera module solution and its manufacturing requirements.
