64mp Sony IMX686 Best Sensor Auto Focus Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional 64mp sony imx686 best sensor auto focus camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
Projects evaluating the Sony IMX686 need to consider more than its 64MP sensor specifications. The host interface, focusing range, optical coverage and connector structure determine whether the camera module can actually fit the target device. This configuration provides a defined C-PHY route for projects that want to integrate IMX686 imaging without starting from a sensor-only design.
The module combines 9248 × 6944 native resolution with 4K@30FPS output, VCM Auto Focus from 10 cm to Infinity, PDAF, HDR and RAW output. Its optical configuration uses a D79.8° field of view, 5.43 mm EFL and F1.89 aperture, while the 30Pin BTB C-PHY MIPI interface defines the host integration path. The standard module is produced using SincereFirst's in-house Active Alignment process.
Features
• 64MP Sony IMX686 Imaging
The Sony IMX686 provides 9248 × 6944 native resolution with a 1/1.73-inch sensor format and 0.8 μm pixels for projects that require high native image detail.
• Defined 30Pin C-PHY Integration
This version uses a 30Pin BTB C-PHY MIPI interface, making it the IMX686 option for host platforms specifically designed around a C-PHY camera connection.
• VCM Auto Focus from 10 cm to Infinity
The VCM Auto Focus structure covers a confirmed focusing range from 10 cm to Infinity, supporting devices that capture subjects at changing distances.
• PDAF, HDR and 4-in-1 Pixel Support
The confirmed IMX686 configuration supports PDAF, HDR and 4-in-1 pixel operation for flexible focusing and imaging modes.
• D79.8° Optical Configuration
The standard lens uses a 5.43 mm EFL, F1.89 aperture and D79.8° field of view, with TV distortion below 1.5%.
• In-House Active Alignment Production
This standard module is produced using SincereFirst's own Active Alignment equipment. AA is part of the camera module manufacturing process rather than a feature of the IMX686 sensor.
Application of MIPI Camera Module
• High-Resolution Access and Identity Terminals
The 64MP sensor, VCM Auto Focus and C-PHY interface can support access terminals, identity capture equipment and other embedded systems that need detailed subject imaging.
• Handheld Scanning Devices
The 10 cm to Infinity focusing range makes the module suitable for handheld scanners and portable capture devices where the target distance may change during operation.
• Document and Detail Capture
High native resolution and Auto Focus can support document capture, visual archiving and other equipment where retained image detail matters.
• C-PHY Embedded Imaging Systems
This module provides a defined IMX686 route for OEM devices whose processors and board architectures are already designed around C-PHY camera integration.

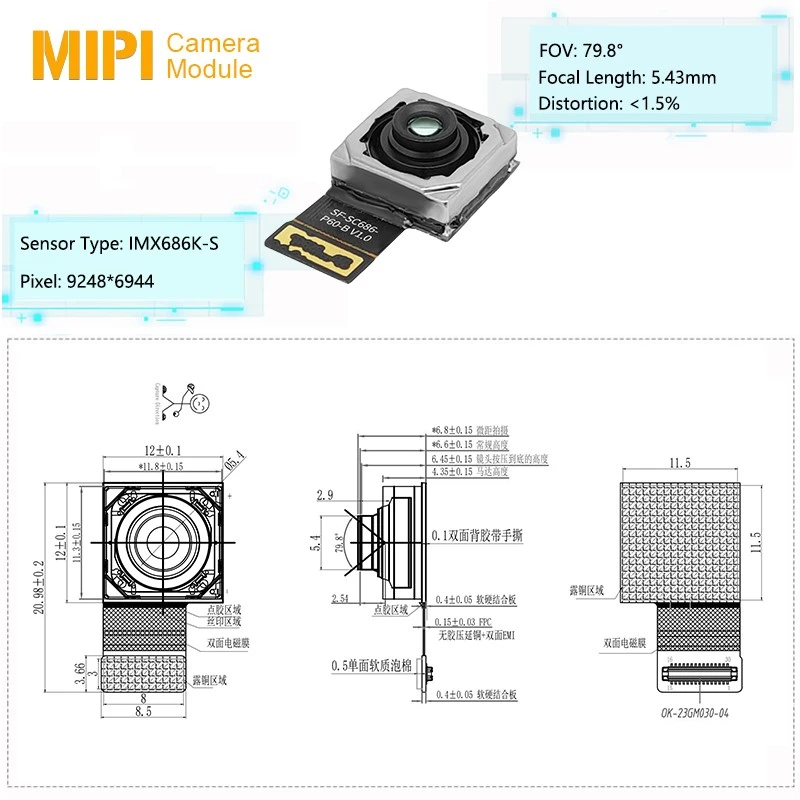

Product Details
|
Product Name |
64MP 30Pin C-PHY MIPI Camera Module |
|
Sensor |
Sony IMX686 CMOS Sensor |
|
Pixel |
64MP |
|
Resolution |
9428x6944 |
|
Frame Rate |
4K@30FPS |
|
Sensor Size |
1/1.73 Inch |
|
Feature |
PDAF, HDR, 4-in-1 Pixel |
|
Output Format |
RAW |
|
Focusing Range |
10cm ~ Infinity |
|
EFL |
5.43mm |
|
F.NO |
1.89 |
|
FOV |
D79.8° |
|
Focus Type |
VCM Auto Focus |
|
TV Distortion |
＜1% |
|
Process |
Active Alignment (AA) Process - standard production |
|
Interface |
30Pin BTB C-PHY MIPI Interface |
Customization Options
C-PHY Host Integration
The target processor, connector and C-PHY routing can be reviewed before the camera configuration is finalized for a new OEM device.

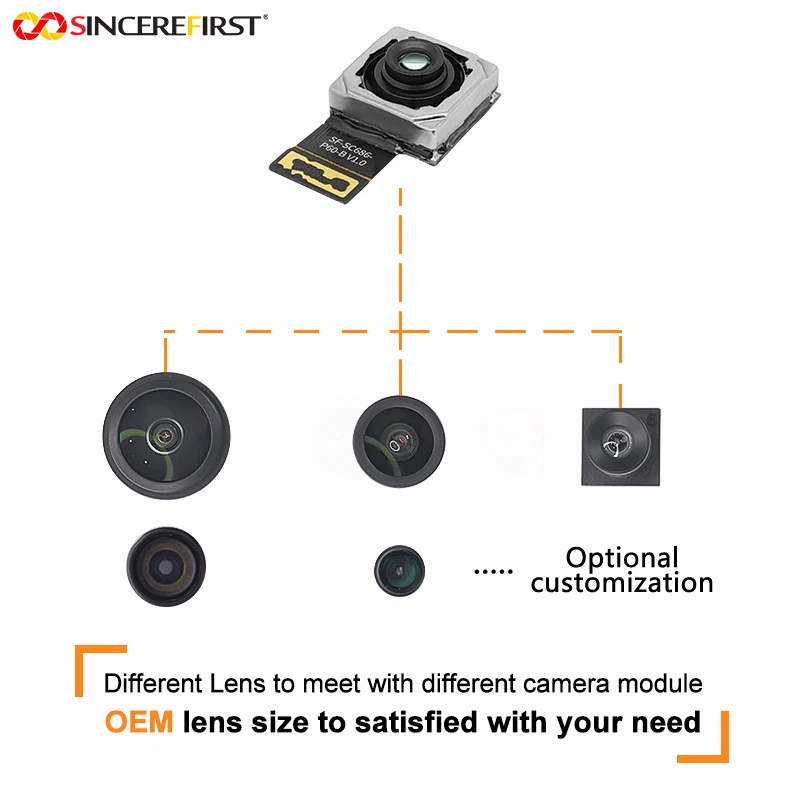

Lens and FOV Matching
The standard D79.8° lens configuration can be discussed when the target device requires different scene coverage or optical characteristics.
FPC and Connector Adaptation
FPC routing and connector-related requirements can be reviewed when the standard module structure does not directly match the customer's board or enclosure.
Auto Focus Configuration
VCM focus behavior can be evaluated against the real working-distance range of the final device.
AA for Related Camera Designs
This IMX686 model uses Active Alignment as standard production. AA can also be added to other suitable camera module designs when the optical requirements justify the additional manufacturing cost.
FAQ
Q: When should I choose this IMX686 C-PHY camera module?
A: Choose this configuration when your host processor or camera interface is designed around C-PHY and you need a 64MP IMX686 module with VCM Auto Focus.
Q: What are the main Sony IMX686 specifications used in this module?
A: The module uses a 64MP IMX686 CMOS sensor with 9248 × 6944 native resolution, a 1/1.73-inch sensor format and 0.8 μm pixels.
Q: Is this a complete camera module or only an IMX686 sensor?
A: It is a complete camera module integrating the IMX686 sensor with lens optics, VCM Auto Focus, FPC, connector and C-PHY MIPI interface.
Q: What is the focusing range?
A: The confirmed VCM Auto Focus range is 10 cm to Infinity.
Q: Does this IMX686 camera module support RAW output?
A: Yes. RAW is the confirmed sensor output format for this module.
Q: Can the FPC, connector or optical configuration be customized?
A: Yes. FPC, connector, lens and related structural requirements can be discussed according to the host platform and mechanical design.
Q: Can I request a sample for C-PHY integration testing?
A: Yes. A sample can be used to evaluate host compatibility, Auto Focus behavior and optical coverage before production.
Q: What if my platform uses D-PHY instead of C-PHY?
A: SincereFirst also offers a 34Pin 4-Lane D-PHY IMX686 configuration. The two versions use the same sensor platform but follow different host-side integration routes.
Planning an IMX686 C-PHY Camera Integration?
If the IMX686 meets your imaging requirement but the C-PHY connection, Auto Focus behavior or optical configuration still needs verification, SincereFirst can help review the module against your host platform or provide a sample for project testing.
