In medical diagnostics, beauty devices, and industrial inspection, the demand for lateral macro imaging is accelerating. Traditional forward-view endoscopes require mechanical rotation to observe sidewalls, which is not only time‑consuming but also introduces wear and potential injury in medical applications. The emergence of dedicated side-view endoscope camera modules with 1080P@60fps performance, such as those based on the OV2740 Camera Module, is reshaping the market. This article analyzes industry trends, technological drivers, competitive landscape, and future directions, incorporating keywords like endoscope camera module, HD Camera Module, 1080P Camera Module, 2MP Camera Module, mini Camera Module, UVC Camera Module, CMOS Camera Module, and OV2740 Camera Module.
1. Technological Evolution: From Forward‑View to Side‑View & From 30fps to 60fps
For decades, most medical and industrial endoscopes used forward‑view optics with fiber or CMOS sensors. Frame rates were typically 30fps, adequate for slow inspection but causing motion blur during dynamic procedures (e.g., vocal cord examination, moving pipeline robots). Meanwhile, side‑view was achieved via prisms or mechanical rotation, adding complexity and cost.

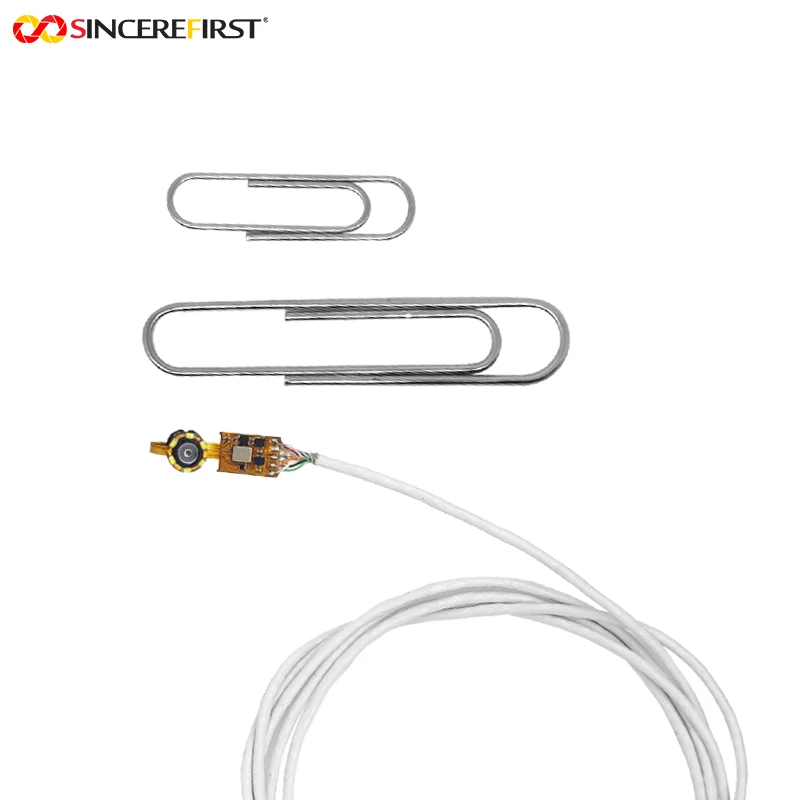

The advent of high‑speed CMOS sensors (like the OV2740) with native 60fps output and miniaturized side‑view lens assemblies has changed the landscape. Now, a mini Camera Module with side‑view optics and 1080P@60fps can be integrated into devices as small as 5–6mm in diameter. The combination of UVC Camera Module driver‑free connectivity further lowers adoption barriers for OEMs.
2. Key Market Drivers
a. Minimally Invasive Medical Procedures
ENT, laryngology, and oral surgery require real‑time, high‑frame‑rate lateral views of moving tissues (e.g., vocal folds, tongue base). 60fps eliminates judder, and side‑view allows direct inspection of laryngeal ventricle or subglottic region without probe bending. The 1080P Camera Module delivers the resolution needed for accurate diagnosis.
b. Beauty & Personal Care Devices
Blackhead removers, skin analyzers, and oral cameras have become consumer favorites. Users expect clear macro views of skin pores, blackheads, or tooth surfaces from a lateral angle. A 2MP Camera Module with side‑view optics and integrated LED illumination provides the necessary detail and ease of use. The small form factor of mini Camera Module fits into handheld beauty wands.
c. Industrial Confined‑Space Side Inspection
Pipe inner walls, engine cylinders, and mold cavities often require inspection of vertical or horizontal surfaces that are inaccessible to forward‑view probes. A side-view endoscope camera module allows non‑dismantling assessment of weld seams, corrosion, or cracks. Low distortion (<2%) ensures accurate measurement.
3. Competitive Landscape

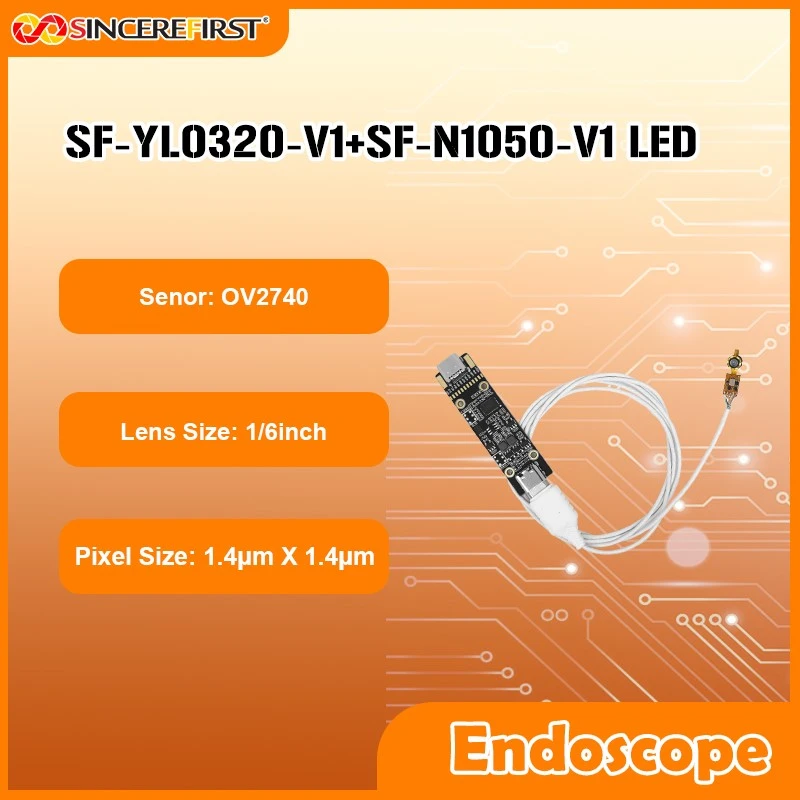

Most competitors offer either side‑view but at 30fps and lower resolution (e.g., VGA), or high frame rate but only forward‑view. The combination of 1080P@60fps and dedicated side‑view optics is still rare. Companies that can deliver this integration with UVC Camera Module and robust mechanical design (sealed FPC, anti‑static) gain a strong differentiator. The OV2740 sensor's low‑light performance (1lux) and auto‑exposure/white‑balance features further enhance usability in varying lighting conditions.
4. Future Outlook
Higher frame rates (120fps) will emerge for extremely fast motion capture, though bandwidth and processing power will be constraints.
AI‑assisted image enhancement (real‑time denoising, edge detection) may be integrated into the module or a small companion processor.
Wireless side‑view endoscopes using WiFi 6 or 5G will become more common for telesurgery and remote inspection.

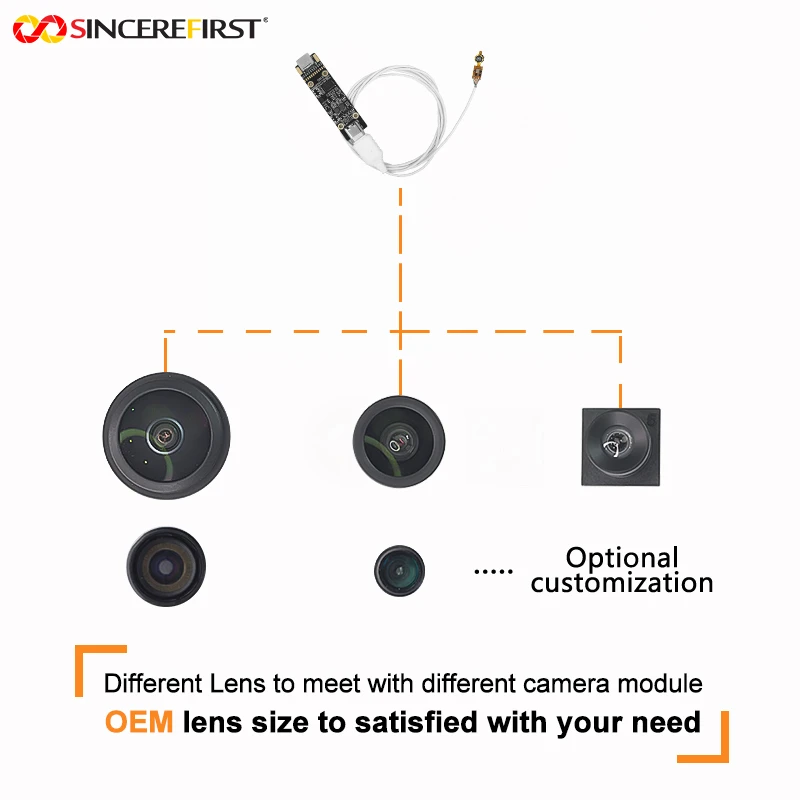

Modular front‑ends allow swapping between different viewing angles (0°, 90°, 120°) on a common USB back-end.
5. Conclusion
The side‑view, 1080P@60fps endoscope module based on the OV2740 Camera Module is set to become a standard component in next‑generation medical, beauty, and industrial inspection devices. Its ability to eliminate blind spots, capture dynamic motion, and plug directly into any USB host positions it as a versatile building block. For system integrators, adopting such a module means faster time‑to‑market and superior user experience. SincereFirst continues to lead in this niche by offering customizable, RoHS‑compliant, high‑reliability solutions.
